Use Range
Upper Cylinder Hydraulic Press, Forming Hydraulic Press. The offered hydraulic press machines are developed utilizing quality approved material and widely finds its applications in Forming of motorcycle spare parts,cell phone casing,LED radiator,watchband,watchcase,hardware tools,etc. Brand Name: GOODSJACK Model number: GSJ-DSU1000 Product Type: Servo Cold Extrusion Payment Terms: T/T,L/C Package: Bubble pack and wooden box Minimum Order: 1 set Delivery Time: 40-50 working days Place of origin: China Price Terms: FOB,C&F,CIF
Product Details
1. Higher precision of the movable working table and high rigidity of the press body make this press;
2. Typically suitable for forming of or piece with irregular shape and required for high precision;
3. Main hydraulic cylinder is made of alloy cast steel and it's inner surface is finely grinded machining;
4. Four columns are made of alloy steel with high tensile resistance and finely grinded and electroplated with hard chrome;

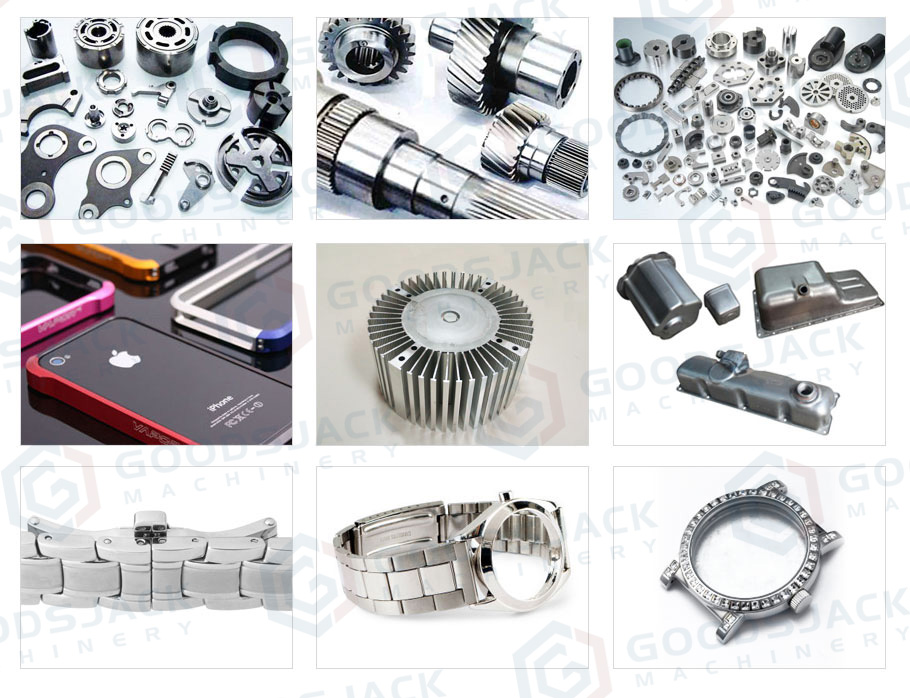

Mainly applicable to metal materials of cold extrusion,forming、shallow、drawing and blanking purposes Such as:automobile,motorcycle spare parts,cell phone casing,LED radiator,watchband,watchcase,hardware tools,etc.
Model | Units | Specifications | |||||||||
DSH-100 | DSH-150 | DSH-200 | DSH-300 | DSH-500 | DSH-650 | DSH-800 | DSH-1000 | DSH-1200 | |||
Main cyinder |
Rated capacity | ton | 100 | 150 | 200 | 300 | 500 | 650 | 800 | 1000 | 1200 |
Silde | mm | 300 | 350 | 400 | 400 | 500 | 500 | 500 | 500 | 500 | |
Fast down speed | mm/s | 150 | 160 | 160 | 160 | 180 | 165 | 165 | 165 | 165 | |
Coining speed | mm/s | 6~15 | 10~24 | 8~9 | 8~12 | 8~15 | 8~16 | 8~16 | 8~16 | 8~15 | |
Return speed | mm/s | 150 | 150 | 150 | 130 | 150 | 160 | 160 | 160 | 160 | |
Knock-out cyinder |
Rated capacity | ton | 15 | 20 | 30 | 30 | 40 | 50 | 50 | 80 | 80 |
Silde | mm | 200 | 200 | 200 | 200 | 200 | 250 | 250 | 250 | 250 | |
Rod diametcr | mm | Φ40 | Φ40 | Φ50 | Φ50 | Φ50 | Φ80 | Φ80 | Φ80 | Φ80 | |
Actual area of bench | L-R(Cylinder) | mm | 500 | 500 | 700 | 700 | 800 | 1000 | 1000 | 1200 | 1400 |
F-B(edge) | mm | 500 | 500 | 700 | 700 | 800 | 1000 | 1200 | 1300 | 1500 | |
Open height | mm | 600 | 600 | 700 | 700 | 800 | 900 | 1000 | 1100 | 1200 | |
Motor power | kw | 7.5 | 15 | 15 | 28 | 37 | 37 | 59 | 74 | 90 |
