Use Range
Stamping, forming, shallow, drawing,die spotting, molding and blanking etc.of metal and none metal parts. Well suitable for pressing and forming of watch & clock parts, spectacle parts, tableware, photo frame, metal ornaments.
Product Details

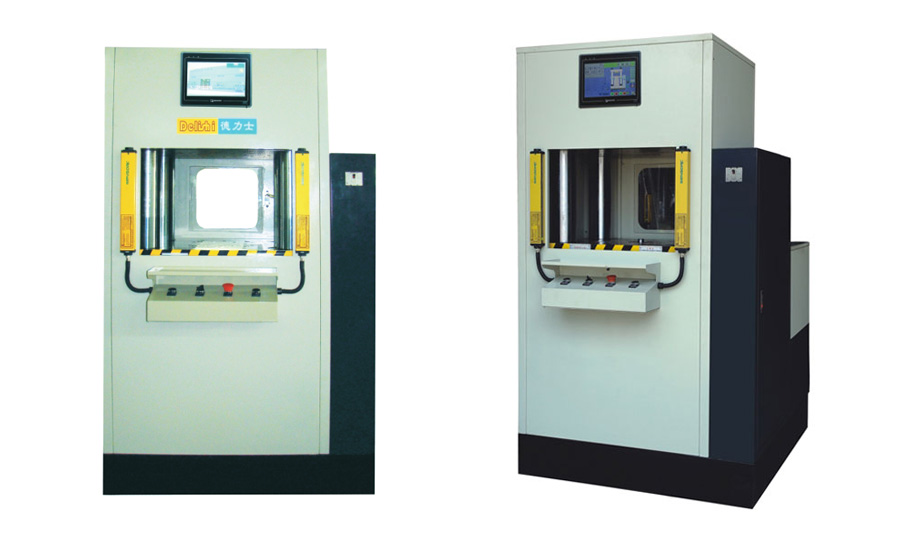

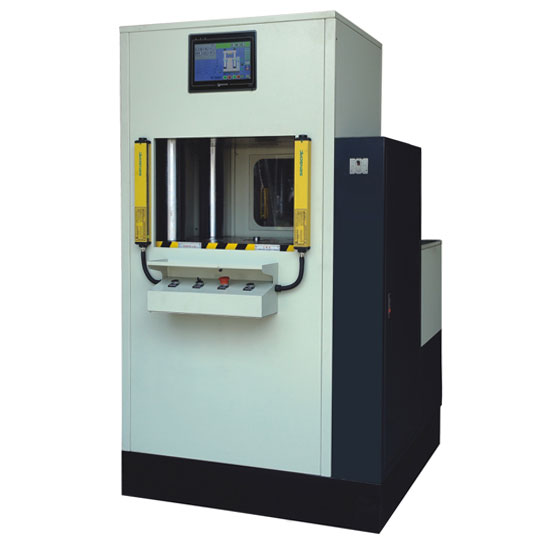

Cylinder 4-column Hydraulic Press
1. Higher precision of the movable working table and high rigidity of the press body make this press typically suitable for forming of workpiece with irregular shape and required for high precision;
2. Faster working speeds allow higher production efficiency;
3. Main hydraulic cylinder is made of alloy cast steel and it’s inner surface is finely grinded Machining;
4. Four columns are made of alloy steel with high tensile resistance and finely grinded and electroplated with hard chrome;
5. The lower cylinder design makes a more compact overall dimension of the machine.
1. Stamping , forming , shallow , drawing,die spotting,molding and blanking etc.of metal and none metal parts;
2. Well suitable for pressing amd forming of watch & clock parts , spectacle parts , tableware , photo frame , metal ornaments.
Model | Units | Specifications | ||||||||
DSAS-100 | DSAS-150 | DSAS-200 | DSAS-300 | DSAS-500 | DSAS-1000 | DSAS-1500 | DSAS-2000 | |||
main cylinder capacity | ton | 100 | 150 | 200 | 300 | 500 | 1000 | 1500 | 2000 | |
system pressure capacity | Mpa | 20 | 22 | 22 | 24 | 25 | 25 | 25 | 25 | |
main cylinder of workingtable | mm | 110 | 110 | 150 | 150 | 150 | 150 | 160 | 160 | |
open height | mm | 380 | 350 | 400 | 400 | 450 | 600 | 650 | 700 | |
approaching speed of working table | mm/s | 180 | 180 | 135 | 135 | 100 | 90 | 90 | 80 | |
returning speed of working table | mm/s | 150 | 150 | 100 | 100 | 90 | 80 | 80 | 75 | |
size of working table | L-R | mm | 15 | 20 | 30 | 30 | 40 | 50 | 50 | 8080 |
F-B | mm | 400 | 450 | 450 | 550 | 650 | 9000 | 1100 | 1350 | |
Over all dimension | L-R | mm | 1140 | 1200 | 1320 | 1460 | 1630 | 2450 | 1680 | 2400 |
F-B | mm | 980 | 1140 | 1340 | 1340 | 1510 | 1700 | 1400 | 2600 | |
H | mm | 1400 | 1540 | 1630 | 1725 | 1990 | 2670 | 3100 | 3300 | |
main motor power | kw | 4 | 5.5 | 5.5 | 7.5 | 15 | 18.5 | 22 | 30 | |
Machine weight (reference) | kg | 2200 | 2650 | 2800 | 3800 | 5800 | 9500 | 23000 | 35000 |
