Use Range

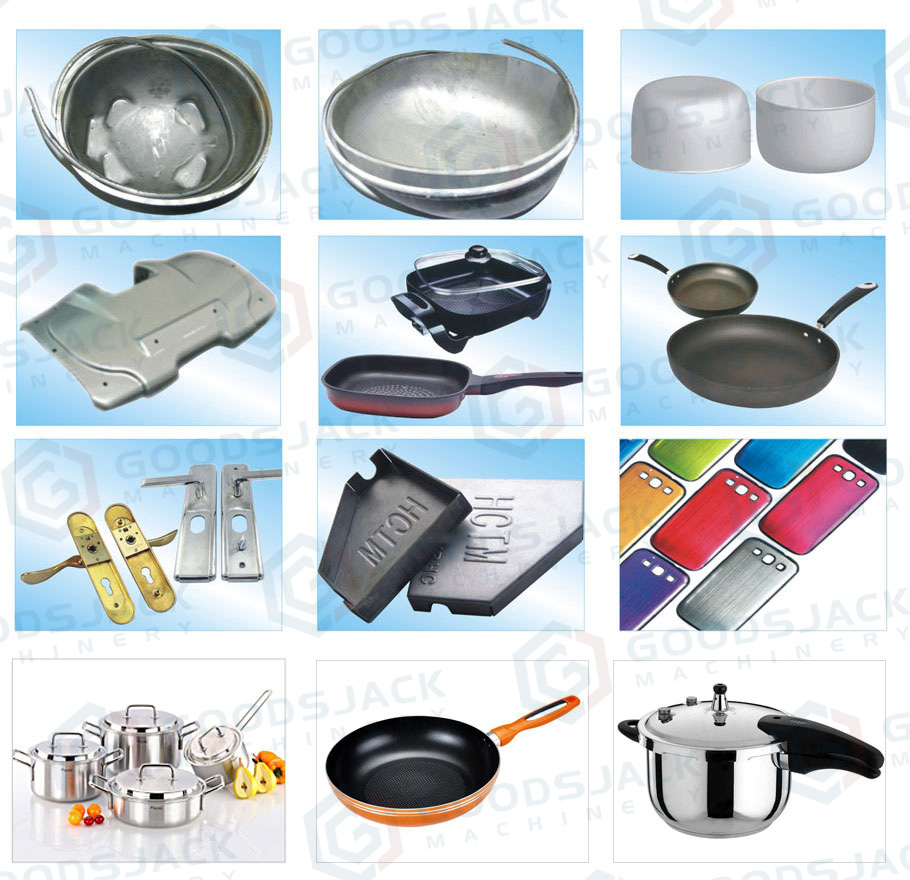

This Hydraulic Rotary Cutting Machine was widely application in compressor housings, pressure cooker, frying pan, lampshades and other products of Rotary cut. In addition to this, our offered hydraulic press machines are thoroughly tested on different stages by our quality examiners. We offer these hydraulic press machines in various specifications for our customers to choose from us.
Product Details

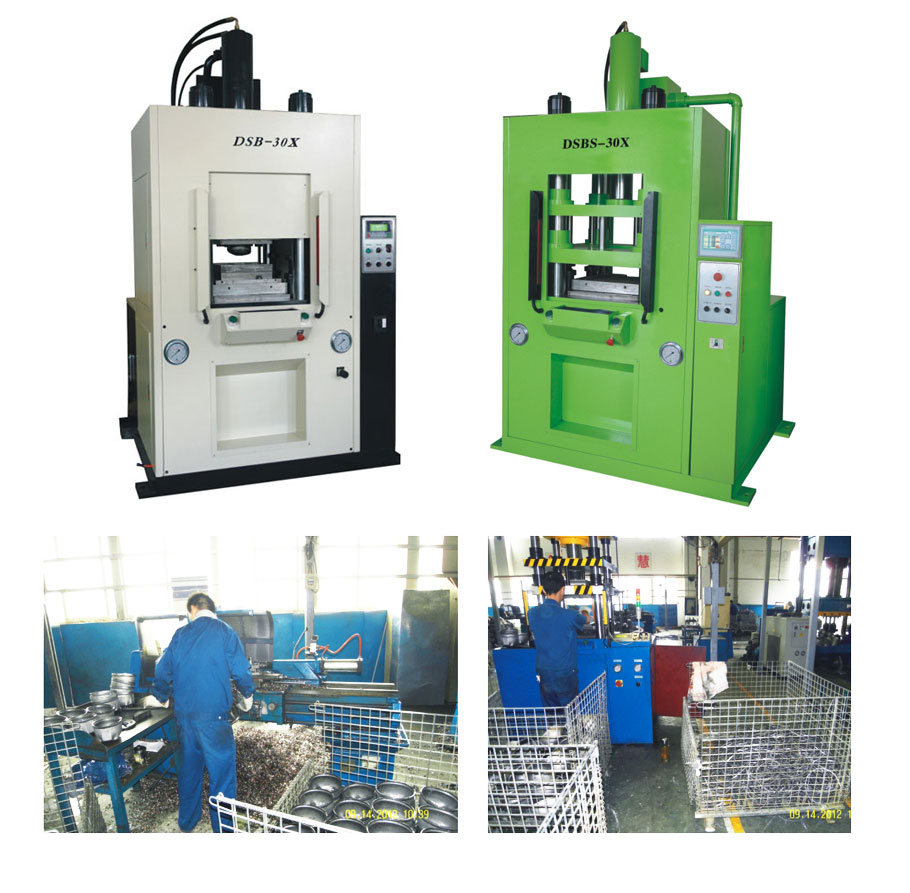

DSB-30X Hydraulic Rotary Cutting Machine
Hydraulic servo motor control system,appliances using siements PLC and touch screen closed-loop control,the motor is stopped when the machine is not working, saving electricity 20%-40%, high precision,suitable for cell phone case, and some precision electronic parts.
Using common electrical and hydraulic control system, PLC control,through buttons to select and operate, suitable for compressor housings, pressure cooker, fryig pan, lampshades and other products of Rotary cut.
|
No |
Name |
Unit |
Magnitude |
|
|
1 |
Master cylinder nominalpressure |
ton |
30 |
|
|
Master cylinder maximum stroke |
mm |
350 |
||
|
2 |
Maximum system pressure |
Mpa |
17 |
|
|
3 |
Maximum system pressure |
mm |
450 |
|
|
4 |
Fixed table height to the ground |
mm |
1050 |
|
|
5 |
Activities table downlink speed |
mm/s |
350 |
|
|
Activities table work speed |
mm/s |
25 |
||
|
Activities table return speed |
mm/s |
220 |
||
|
6 |
Table effective size(column inner) |
L-R |
mm |
450 |
|
F-B |
mm |
450 |
||
|
7 |
Machine external size |
L-R |
mm |
1350 |
|
F-B |
mm |
1300 |
||
|
H |
mm |
2588 |
||
|
8 |
Motor power |
|
KW |
7.5 |
