C-Type Servo Hydraulic Press, GOODSJACK C Type Servo Hydraulic Press Machine was widely application in metal or non metal parts stamping,moulding,shallow drawing,shaping and pressure assembling. Forming of spectacle parts, lock parts, metal hardware pressing, assembly of electronic connectors, electric components and rotor & stator of motor etc.
Product Details

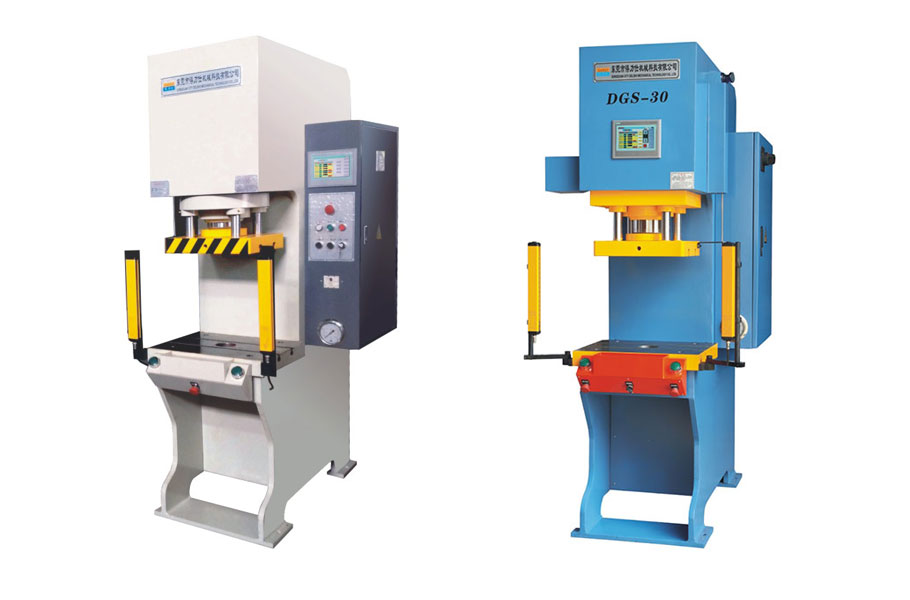

C-Type Servo Hydraulic Press
1. Faster approaching and returning speeds by inner cylinder allow very high production efficiency;
2. Very simple and convenient adjusting device makes ram or upper working table pressing at any position within its whole stroke and the length of approaching and pressing strokes can be verb easily adjusted;
3. Pressing capacity can adjusted according to applied pressing technology;
4. Welded strong frame body made of high quality integral steel plate ensures high rigidity under high pressure and the most convenient operating space.
1. Stamping , forming , shallow drawing and pressing assembly etc.
2. Forming of spectacle parts , lock parts , metal hardware pressing , assembly of electronic connectors , electric components and rotor & stator of motor etc.
Model | Units | Specifications | ||||||||
DGS-05 | DGS-10 | DGS-15 | DGS-25 | DGS-35 | DGS-50 | DGS-80 | DGS-100 | |||
Main cylinder capacity | Ton | 5 | 10 | 15 | 25 | 35 | 50 | 80 | 100 | |
Max system pressure | Mpa | 13 | 12 | 15 | 16 | 16 | 20 | 21 | 24 | |
Max stroke length | mm | 180 | 200 | 200 | 250 | 250 | 300 | 300 | 300 | |
Open height(Side to bolser) | mm | 350 | 400 | 400 | 400 | 400 | 550 | 550 | 550 | |
Gap depth | mm | 150 | 175 | 175 | 200 | 200 | 300 | 325 | 325 | |
Slide approaching speed | mm/s | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
Slide pressing speed | mm/s | 40 | 30 | 25 | 20 | 20 | 20 | 18 | 18 | |
Slide returning speed | mm/s | 200 | 200 | 200 | 200 | 180 | 180 | 180 | 180 | |
Upper slide size | L-R | mm | / | / | / | / | 400 | 440 | 520 | 520 |
F-B | mm | / | / | / | / | 300 | 340 | 400 | 400 | |
Size of shank hole | mm | Φ30x50 | Φ30x55 | Φ40x60 | Φ40x60 | Φ40x65 | Φ50x70 | Φ60x75 | Φ60x75 | |
Fixed bolster size | L-R | mm | 440 | 450 | 450 | 460 | 500 | 700 | 800 | 950 |
F-B | mm | 300 | 350 | 350 | 350 | 400 | 600 | 650 | 650 | |
Height of bolster to ground | mm | 850 | 850 | 850 | 850 | 850 | 850 | 900 | 900 | |
Over all dimension | L-R | mm | 580 | 610 | 620 | 620 | 680 | 720 | 1050 | 1150 |
F-B | mm | 930 | 940 | 1080 | 1100 | 1150 | 1500 | 1750 | 1850 | |
H | mm | 1770 | 1880 | 1980 | 2040 | 2050 | 2300 | 2560 | 2560 | |
Main motor power | kw | 2.2 | 3 | 4 | 4 | 5.5 | 7.5 | 11 | 15 | |
Weight(Approx) | kg | 950 | 1020 | 1500 | 2200 | 2800 | 4800 | 6500 | 7500 |
