Hydraulic Press Machine for Automotive Brake CamshaftUpdate：2022-10-13 Hits：192

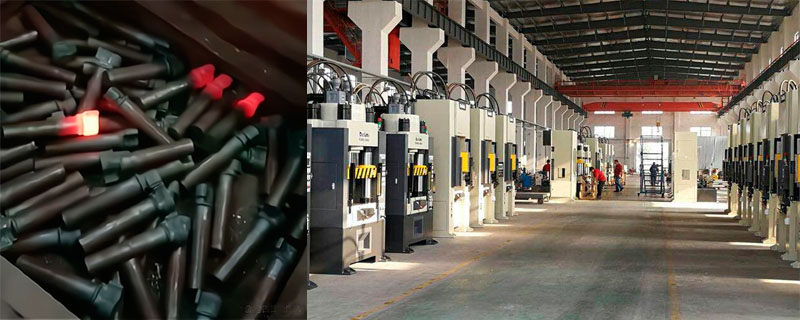

The camshaft used for automobile brake braking adopts vertical closed die forging without flash, and closed die forging is selected. One-time forming does not require any blanking process, so it saves molds and saves money. Working hours, increase output and ensure product quality. Brake camshaft forging processing equipment generally uses a certain tonnage of hot forging hydraulic press machine, also known as camshaft hot forging hydraulic press, brake camshaft hot forging extrusion hydraulic press. Commonly used 500-ton, 630-ton, 800-ton hydraulic presses, there are four-column, frame, gantry and other types.
Features:
1. Brake camshaft extrusion hydraulic press - 500 ton camshaft hot forging press is a three-beam four-column structure, equipped with a servo control system, which is efficient and energy-saving in terms of operation. The overall frame structure, the fuselage has sufficient strength and rigidity, strong anti-eccentric load capacity, and good mechanical precision retention. Low investment cost, simple and easy to operate.2. The machine is equipped with an independent hydraulic system, which is located on the ground, and the oil pump motor unit converts electrical energy into hydraulic energy to provide power. The advanced two-way cartridge valve and pilot valve constitute the hydraulic control components, and the significant advantages are high integration, less leakage, and fast electro-hydraulic response.
3. The power station is equipped with filtering and cooling devices, and the pipelines are connected by flanges.
4. Brake camshaft extrusion hydraulic press - 500 ton camshaft hot forging presses mostly use three beams and four columns structure, the upper and lower beams and columns form a rigid closed frame to bear all the working loads of the hydraulic press. An eccentric guide sleeve is embedded in the movable beam, which protects the column and the beam, and prolongs the life of the important parts of the beam and the column. All joints on the system pipelines are connected with special flanges or pipes with S-direction sealing, and the anti-vibration pipe clamps are reasonably added to reduce energy loss and prevent leakage.
5. The pressure and speed can be adjusted steplessly within the rated range.
6. The stamping stroke limit height can be adjusted according to customer needs.
7. Brake camshaft extrusion hydraulic press - 500 ton camshaft hot forging press has two control modes: manual and semi-automatic.
8. The upper cylinder and the lower pressure structure, the workpiece is stable and reliable in the mold cavity, and the mold changing and feeding and discharging are convenient, which can greatly improve the production efficiency
9. Brake camshaft extrusion hydraulic press - 500 ton camshaft hot forging press electrical system adopts PLC control, stable action, convenient and reliable use, can realize single-pump pressing, double-pump cold (hot) extrusion
Operating Specifications:
1. Adjustment operation
2. Semi-automatic operation
3. The action mode is selected by the electrical switch.
4. The pressure of the master cylinder is adjusted by the pressure valve, and is equipped with a remote pressure regulating valve, which is convenient to adjust the pressure.
