    What is Hydraulic Powder Compacting PressUpdate：2022-06-14     Hits：361

    The hydraulic powder compacting press adopts PLC automatic control, which greatly improves the production efficiency, thereby improving the output and quality of metal powder products. The metal powder hydraulic press is a four-column press, which adopts an optimized hydraulic transmission technology scheme, with strong pressure, accurate positioning and perfect action combination. The metal powder hydraulic press has low failure rate, low calorific value, high productivity, energy saving and environmental protection.

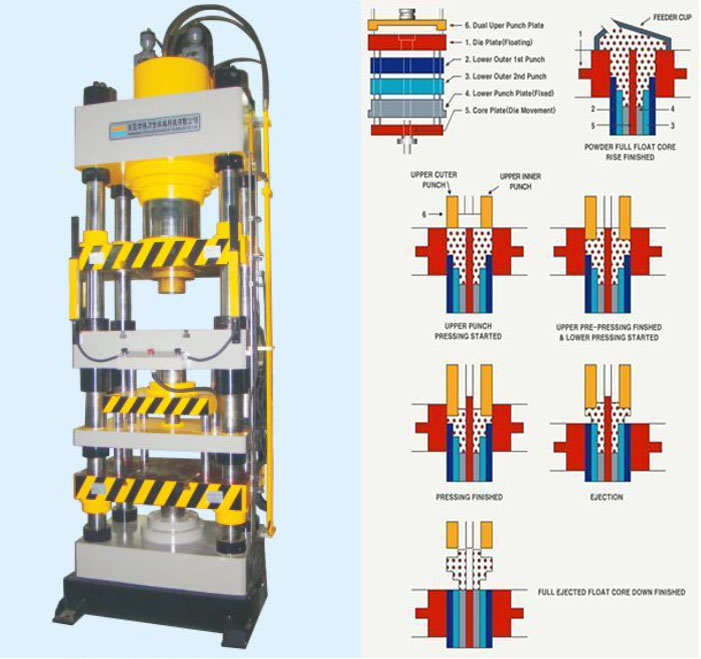

    hydraulic power compacting press

    The hydraulic powder compacting press adopts the integrated control of machine, electricity, liquid and gas, and has a fully automatic automatic feeding device. It adopts floating pressing, so that the forming density of the product can meet the requirements, the demoulding is smooth, and the pressing method can be selected. The hydraulic system of the automatic powder hydraulic press adopts The combination of superimposed valve blocks ensures continuous, frequent and stable operation of the hydraulic press for pressing metal powder; the three-position mechanical stopper positioning and stepless adjustment mechanism of automatic charging, forming and automatic demolding determine the stability of the geometric size of metal powder products. tune. The fully automatic powder forming hydraulic press is equipped with an oil cooling device. It adopts numerical control PLC and human-machine interface centralized control, and is equipped with positioning device to ensure the consistency of metal powder products.
    Features of hydraulic powder compacting press
    1. The equipment has various shapes and structures, including three beams and four columns, four beams and four columns, and frame types.
    2. The equipment tonnage series is complete, ranging from 100 to 2000 tons.
    3. The processing process is divided into manual, semi-automatic and fully automatic. PLC plus touch screen is selected.
    4. The equipment has rich types of powder pressing technology, unique adjustable pressure relief function, powder sinking function, two-way pressing and floating pressing are optional.
    5. Double selection of demoulding, automatic feeding and manual feeding.
    6. The precision of the pressed powder products is stable, the travel switch control, the mechanical limit limit, the grating ruler limit, and the pressing precision is high.
    7. The CNC control system is open, and the pressing tonnage, speed, working stroke, pressing time, working pressure, and demolding method can be adjusted according to user needs.
